KM69 Portable ECG For Pets Led Display Veterinary 12 Lead Machine

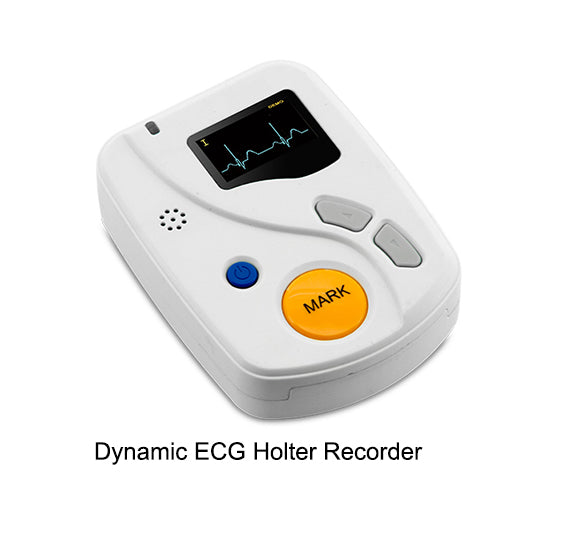

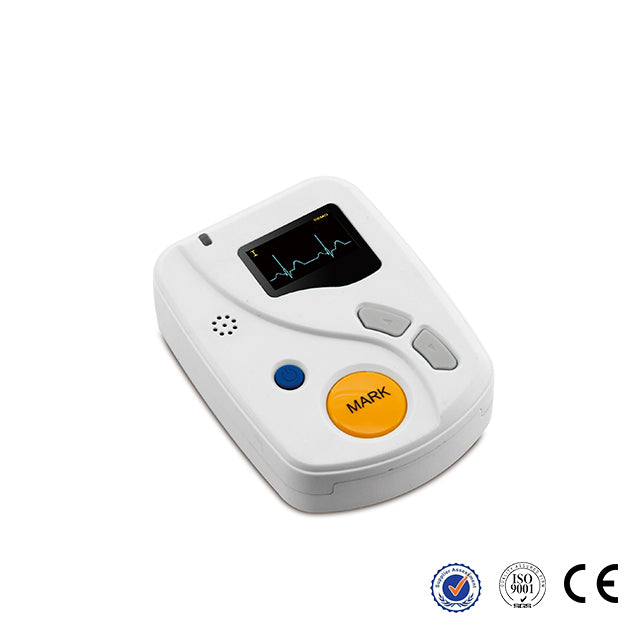

Dynamic ECG System contains recorder & analysis software. Recorder is an easy- to-use unit, which collects 12-lead ECG waveform synchronously and records continuously for 48 hours.
Recorder Features
- Compact design.
- OLED display.
- Function of event marking.
- Removable TF card(volume: up to 2GB).
- One "AAA" size battery can collect the ECG data of 48-hour.
- Ten electrodes synchronously collect the 12-lead ECG data.
Software Features
- With 12 leads synchro analysis , QRS search can be more exactly
- There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc.and multiplicate User-defined templates could almost identify every kind of pathologic waveforms
- Flexible atrial fibrillation analysis, so that physicians can use full, segmented automatic, manual analysis of atrial fibrillation, make the analysis more quickly and accurately
- Powerful pacemaker analysis, on the AAI, VVI, DDD etc. all pacemaker analysis
- Any period of single lead or 12-leads ECG can be reviewed at any time with the function of fast waveform review and analysis
- Analysis of heart rate variability with short-range 5 minutes and long-range 1 hour and full analysis of heart rate variability
- A one-stop printing operation, report printing process is convenient and quick
- Heart rate turbulence" analysis can predict the risk of death in patients with myocardial infarction
- "T Wave alternation" analysis is a important index on judging and preventing Arrhythmia
- The report has more reference value with the functions of VCG, VLP, TVCG and QTD analysis.
Standard
- Lead mode: standard 12-lead
- Sampling accuracy: 12bit
- Recording time: 48h
- Scale voltage: 1mV±5%
- Standard Sensitivity: 10mm/mV±5%
- Noise level: ≤30μV
- CMRR: ≥60dB
- Low-frequency characteristics: Time constant≥3.2s
- Enduring polarization voltage:±300mV DC polarization voltage,sensitivity shift≤±10%
- Least measure signal: 50 µV p-p
- Product safety type: Type B applied part(Internally powered equipment)
Accessories
- ECG lead wires(12-Lead)
- ECG electrode(20 per bag)
- Micro sd Card Reader(1)
- Disk(1)
- Host bag(1)
- User manual(1)
- softdog
Physical Characteristic
- Dimension: 80.5mm(L) *59.5mm(W) *22mm (H)
- Weight: 61.5g (Without battery)
