Signle Channel ECG KM100G-VET

Name: Signle Channel ECG KM100G-VET
Brand: KeeboVet Veterinary Ultrasound Equipment
SKU: KM100G-VET
Price: 690.00 USD
Availability: InStock

$ 690.00

Quantity

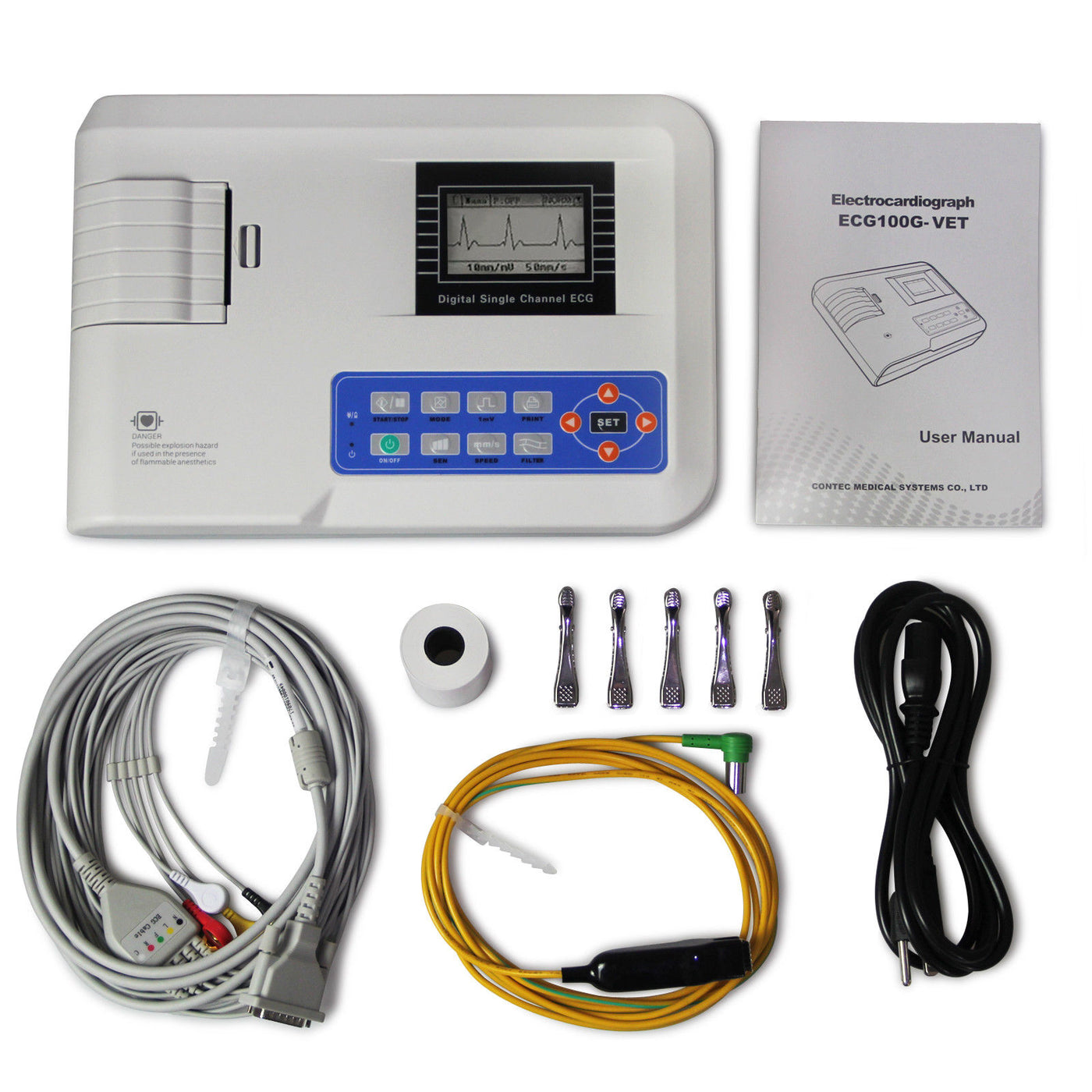

KM100G-VET Veterinary ECG/EKG Machine Single-Channel Electrocardiograph, Animal

Features:

High-resolution thermal printing array system
Frequency response is as high a 150Hz
Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed, and filter operation status
High-resolution digital filter inhibits baseline drift without affecting ECG waveform
One-touch operation
Concept of floating input circuit meets IEC safety standard
Rechargeable battery supporting more than 50 patient examinations
Lead Standard: 12 leads

Specifications:

Input Circuit Floating; Protection against Defibrillator effect
Standard 12 Leads, Lead change automatically
Patient Current Leakage <10μA
Input Impedance ≥10ΜΩ
Calibrating Voltage 1mV±3%
A/D Conversion 12 bit
Frequency Response 0.05Hz~150Hz (IEC)
Time Constant >3.2seconds
CMRR
>80dB >100dB (with filter) EMG Filter 35Hz (-3dB) / 25Hz (-3dB)
Sensitivity 1/2, 1, 2 (cm/mV), Conversion Deviation≤5%
Recording System Thermal-array
8 dots/mm ( vertical )
16 dots/mm ( horizontal, 25mmc )
Paper Speed 25, 50mm/s±3%
Recording Paper 50mm,20m, high-speed roll
Input Circuit Current ≤50nA
Safety Standard IEC class I, type CF
Power Supply AC: 220V / 110V, 50/60Hz
DC: 12V rechargeable battery
Skin Voltage Tolerance ±300mV
Noise Level <15uVp-p

Size:

Dimensions 310mm×230mm×70mm

Dimension of Packing 400mm×280mm×160mm

Language of operation interface:

Chinese, English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian. Print language includes English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian.

Display and printing:

Optional a display and print
