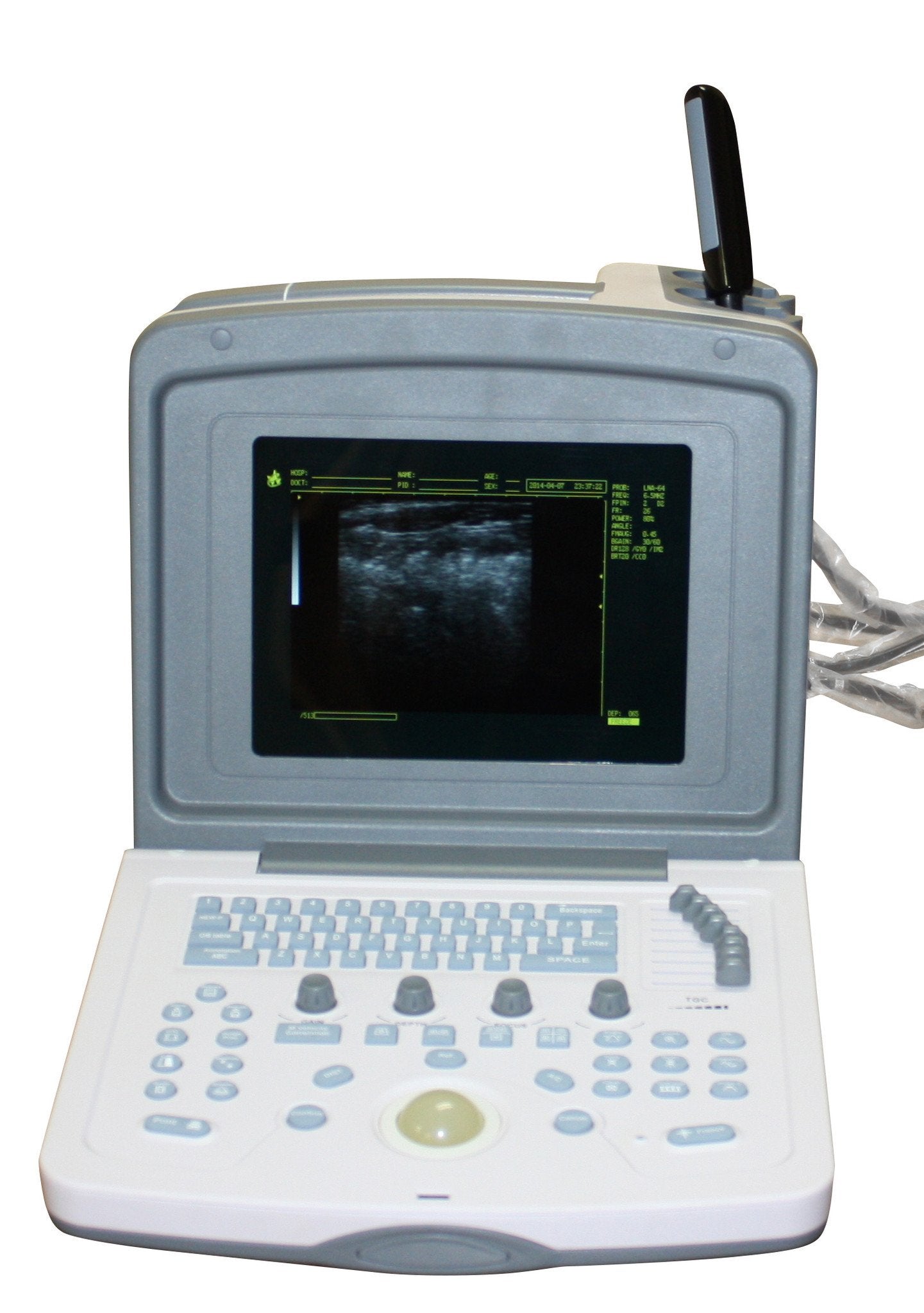

Reliable Older WELLD Model Digital Vet Ultrasound System
This WED-9618V model was a demo for only a few hours. It is like new, with a full two year warranty.
WED-9618 has full digital beam-forming technology, and provides excellent image quality with high resolution and definition.The selectable multiple transducers, powerful measuring and analyzing software packages extent its application to broader fields.
Features
- Very reliable machine
- Low cost
-
Full digital beam forming
- Two probe connectors
-
OB measurements
- Equine--GA (GSD)
- Bovine--GA (BL,SL,HL)
- Swine---GA (HL)
- Sheep --GA (USD)
- Cat-----GA,EDD (HD,BD)
- Dog----GA,EDD (GSD,CRL,HD,BD)
Specifications
-
Scanning mode: Convex/Linear
- Display modes: B,B+B,B+M,M,4B
- Scanning depth: 60-130mm (6.5MHz Rectal Linear)
- Cine-loop: 511 frames (Max)
- Image permanent storage: 32 frames
- Image conversion: up/down, left/right, black/white
- Local zoom: 2 times both in real-time and frozen
- Measurement: distance, circumference, area, volume, EF rate, heart rate
- Port: PAL-D video out, USB 2.0
- Monitor: 10 inch SVGA
- Comment: date&time, name, sex, age, doctor, hospital,annotation (whole screen comment input)
Standard configuration

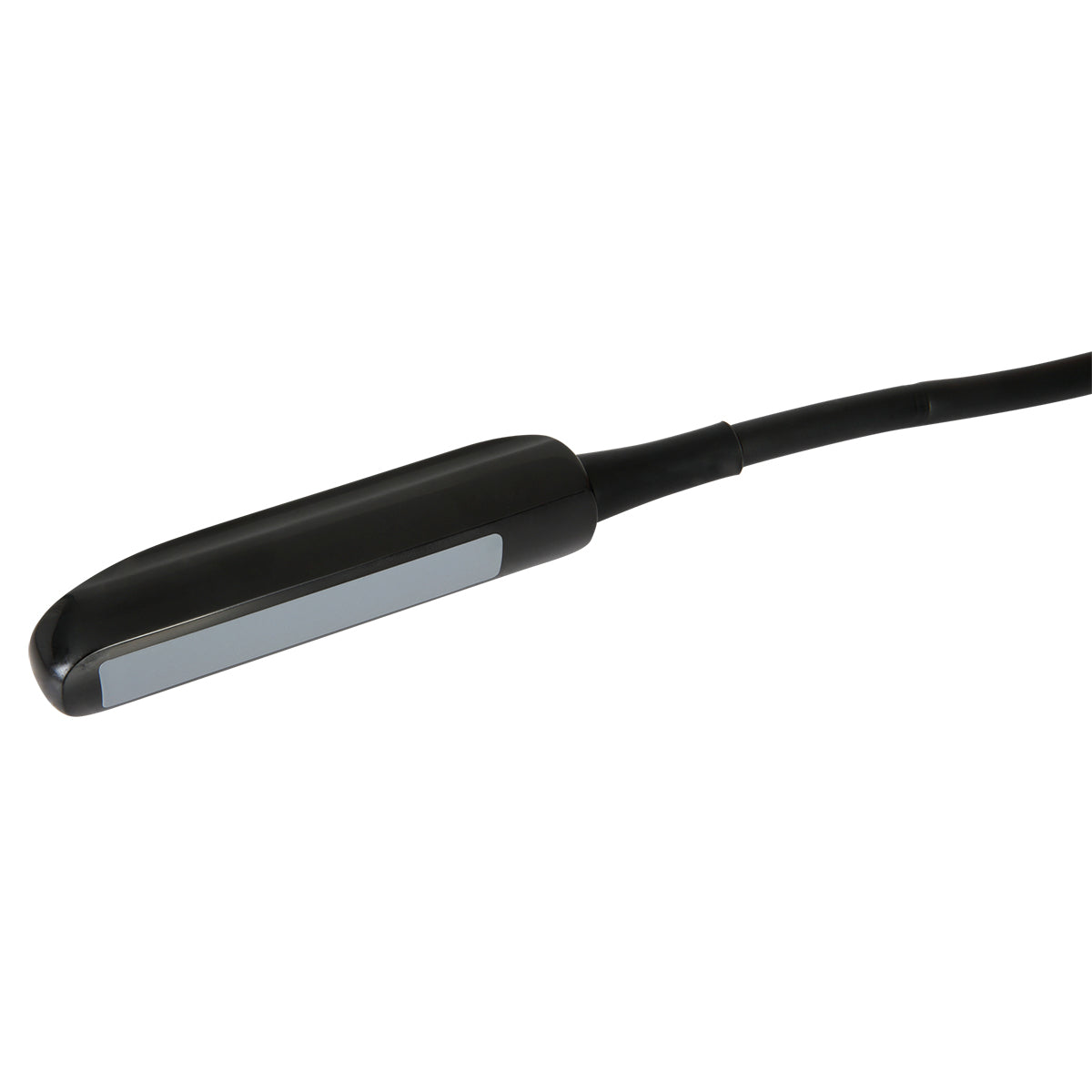

6.5MHz Rectal Linear Probe

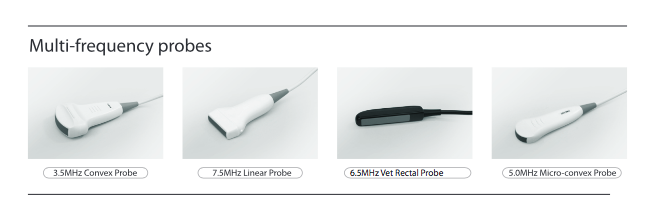

Optional configuration
7.5MHz Linear Probe
5.0MHz Micro-Convex Probe
3.5MHz Convex Probe
Cart
Video Printer
